UWB Anchor Positioning System

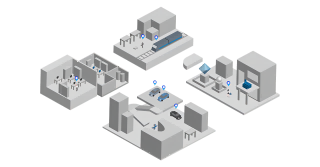

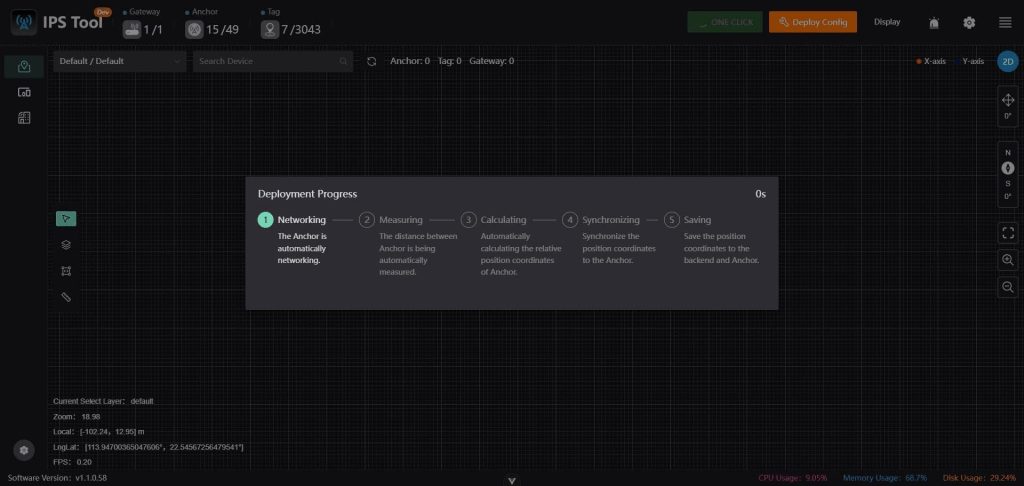

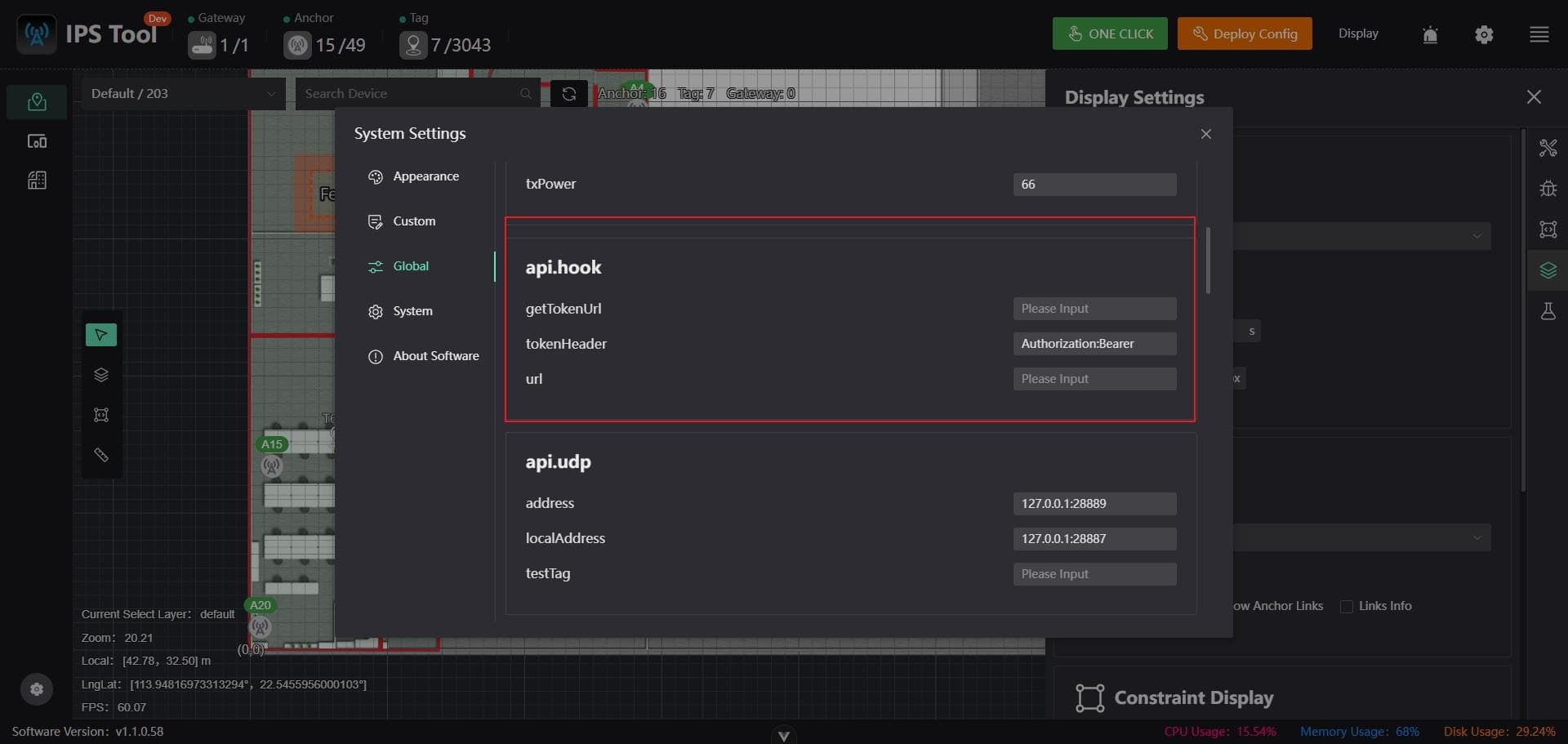

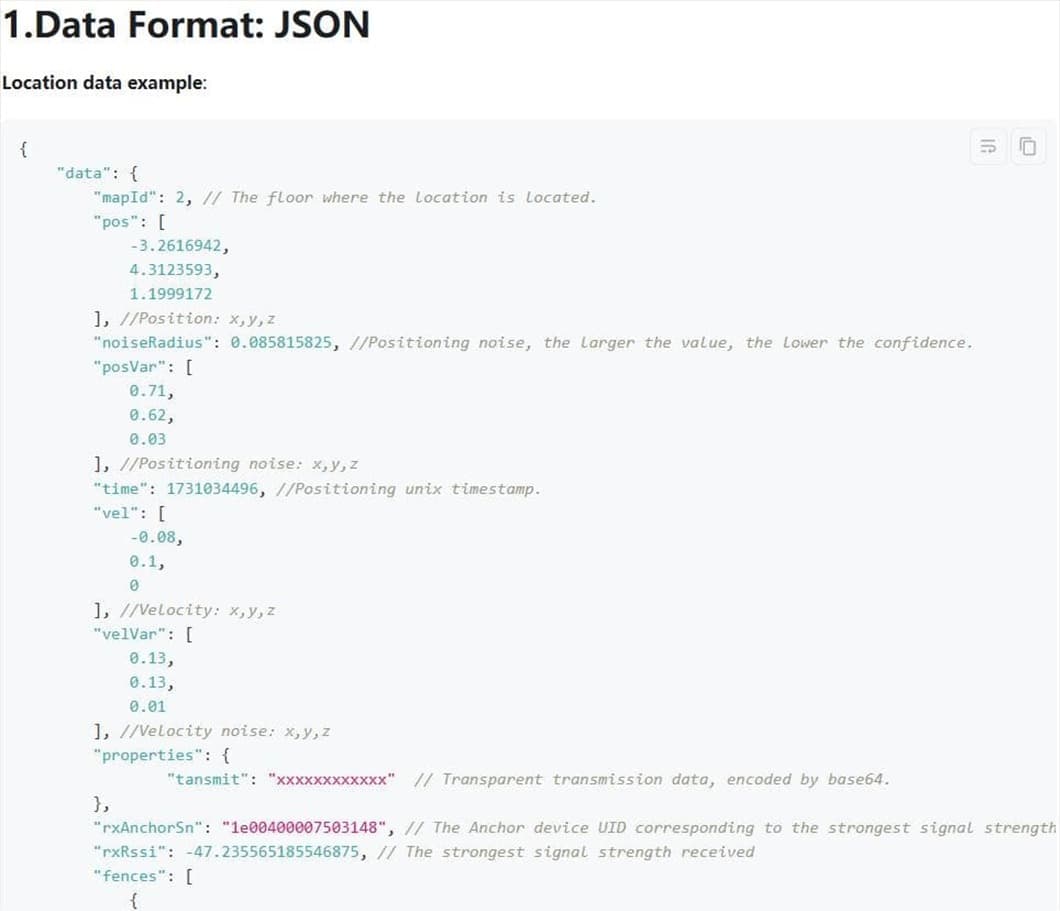

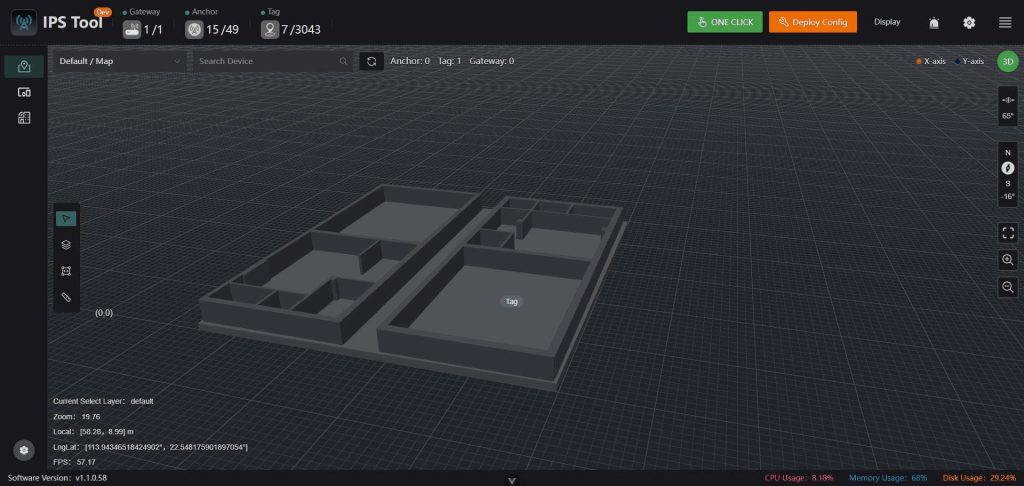

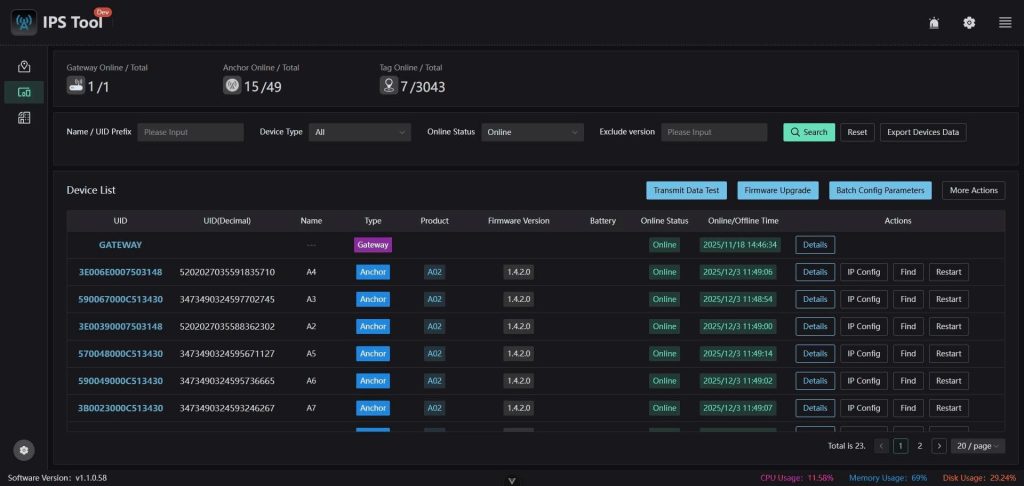

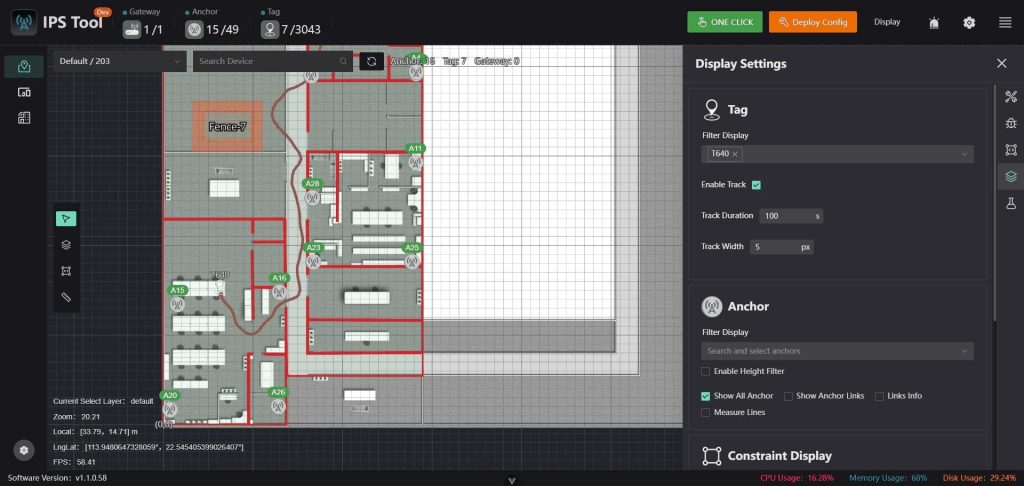

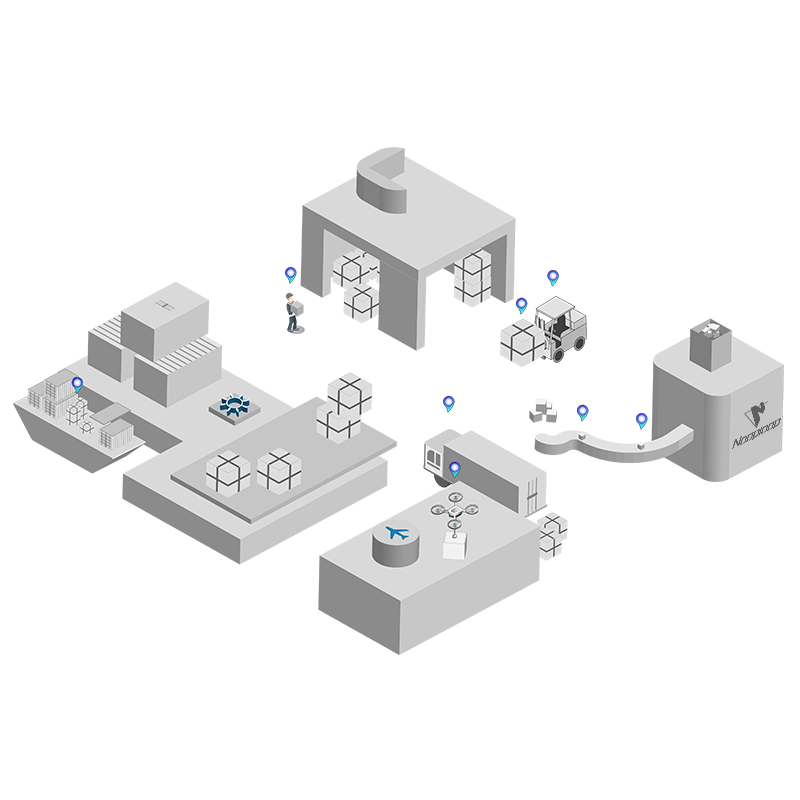

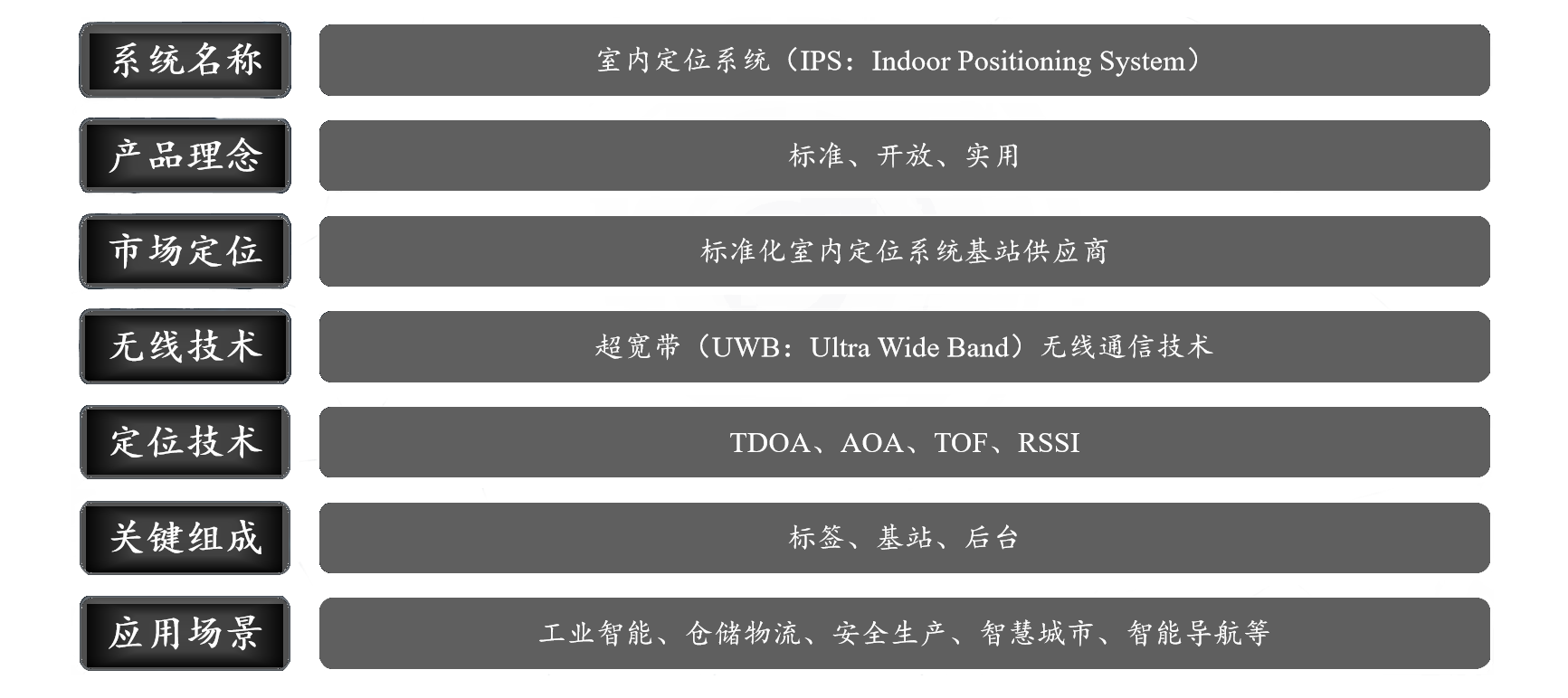

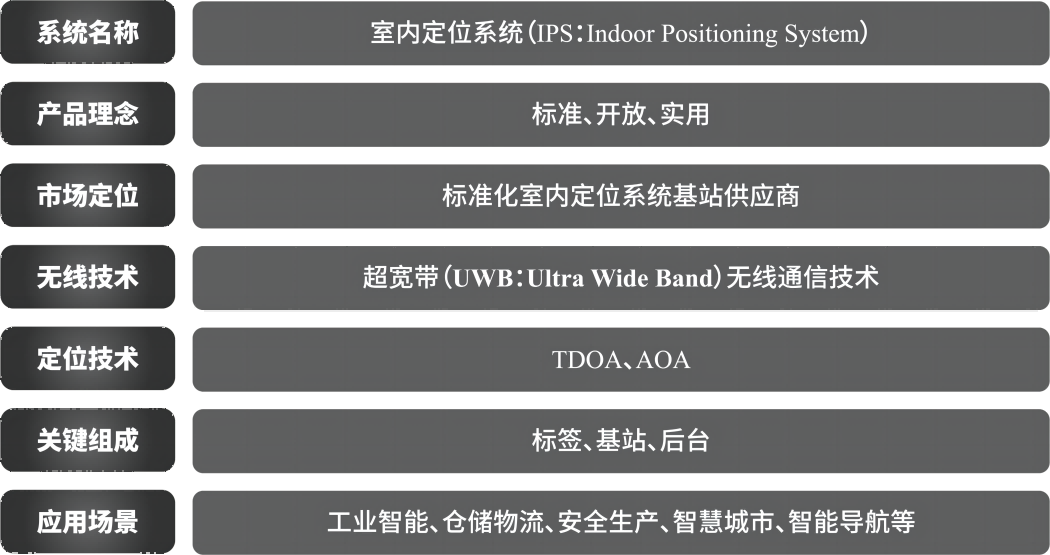

The IPS UWB anchor positioning system is a solution based on ultra wideband technology, consisting of anchors, tags, gateways, and software. The system supports centralized positioning across multiple regions, floors, and cities, with a typical positioning accuracy of up to 10-30cm. The ultra-low power positioning tags meet the requirements of months and years of ultra long battery life, and the ultra-high concurrency performance makes the anchor and tag capacity almost unlimited. The functions of point map calibration and intelligent diagnosis make system deployment easier. The anchor includes TDOA and AOA anchor, supporting mixed deployment to achieve optimal quantity. Tags include various forms such as bracelets, work cards, and particles to meet the needs of different scenarios. Software opens APIs to meet software integration requirements. The software supports functions such as electronic fences, call alarms, trajectory tracking, and department management, and is widely used in scenarios such as warehousing and logistics, manufacturing factory and safe construction.

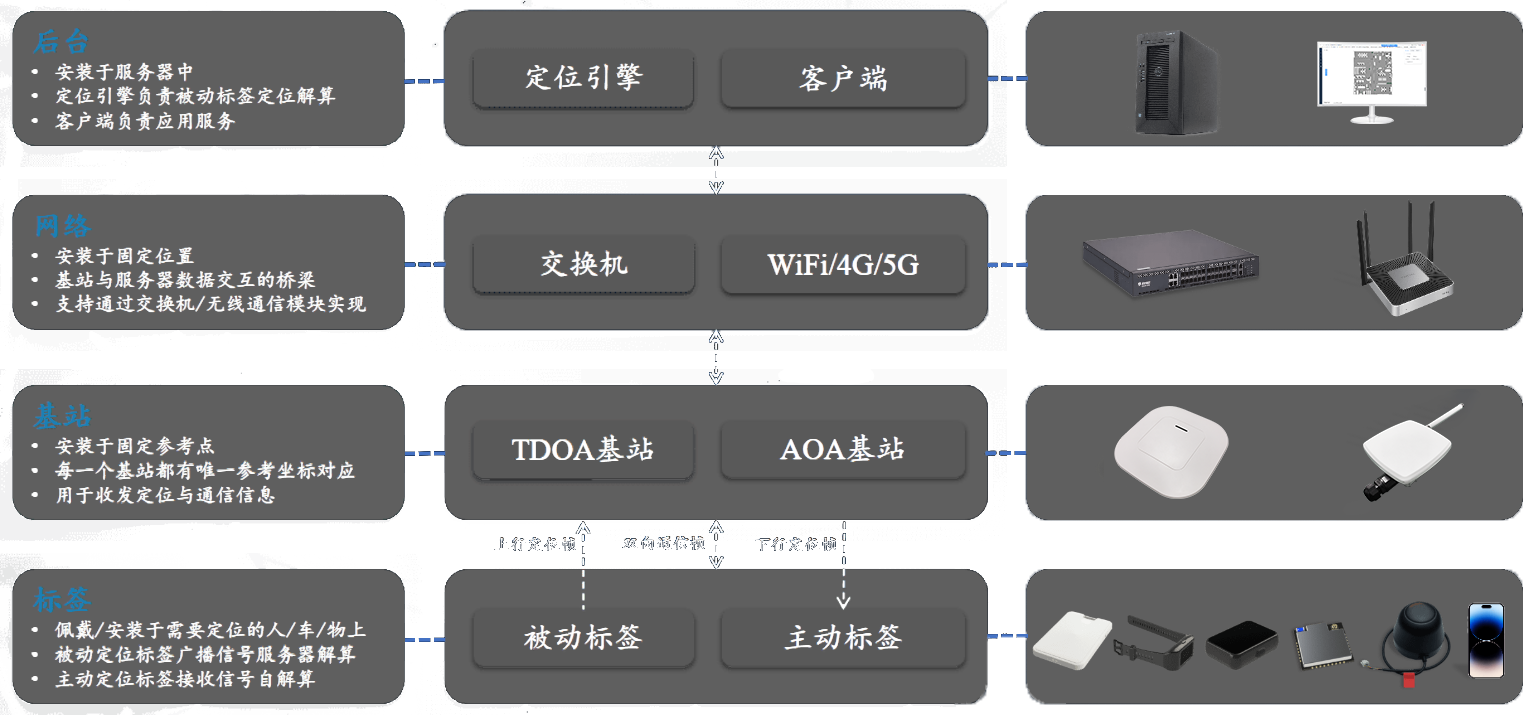

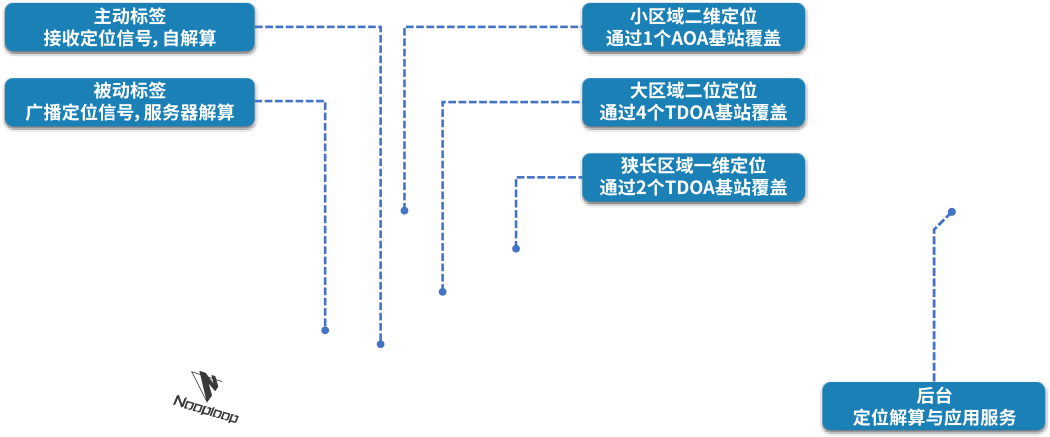

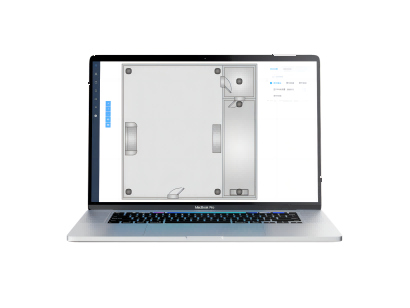

SoftwareGateway· Software Applications· Device data interaction· Tag position calculation· Installed in a fixed position· Receiving positioningsignals &
bidirectionalcommuncation
· Wearing/installing on people,
vehicles, assets
· Tag broadcast wireless positioning
package
AnchorTag

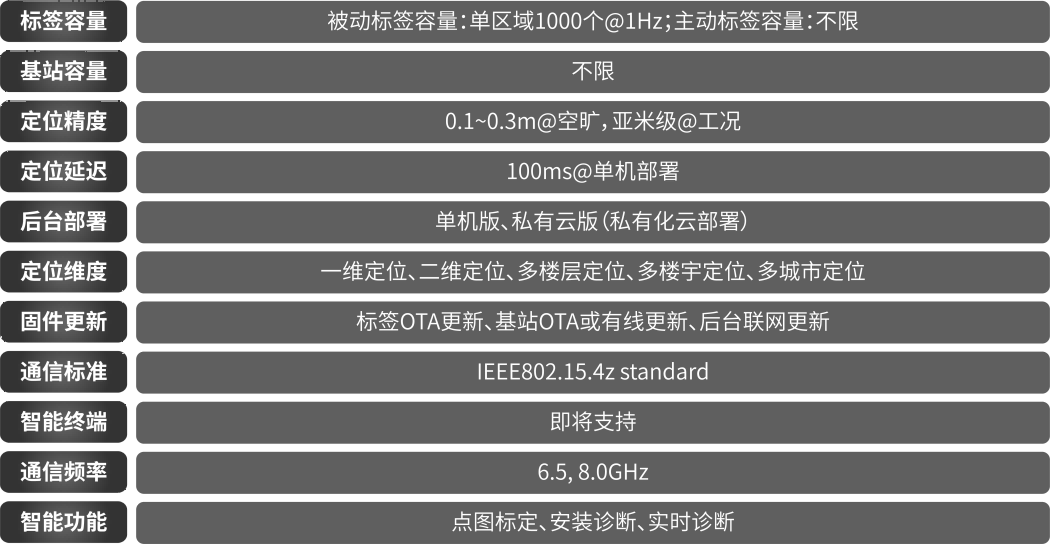

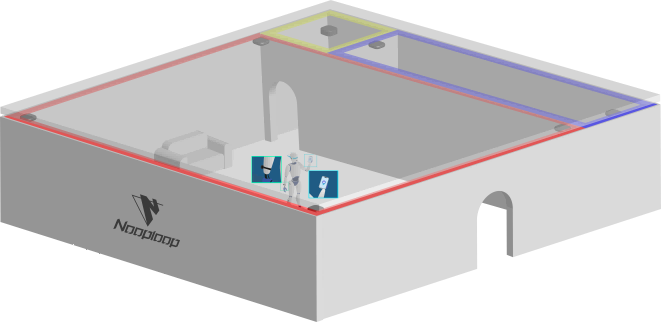

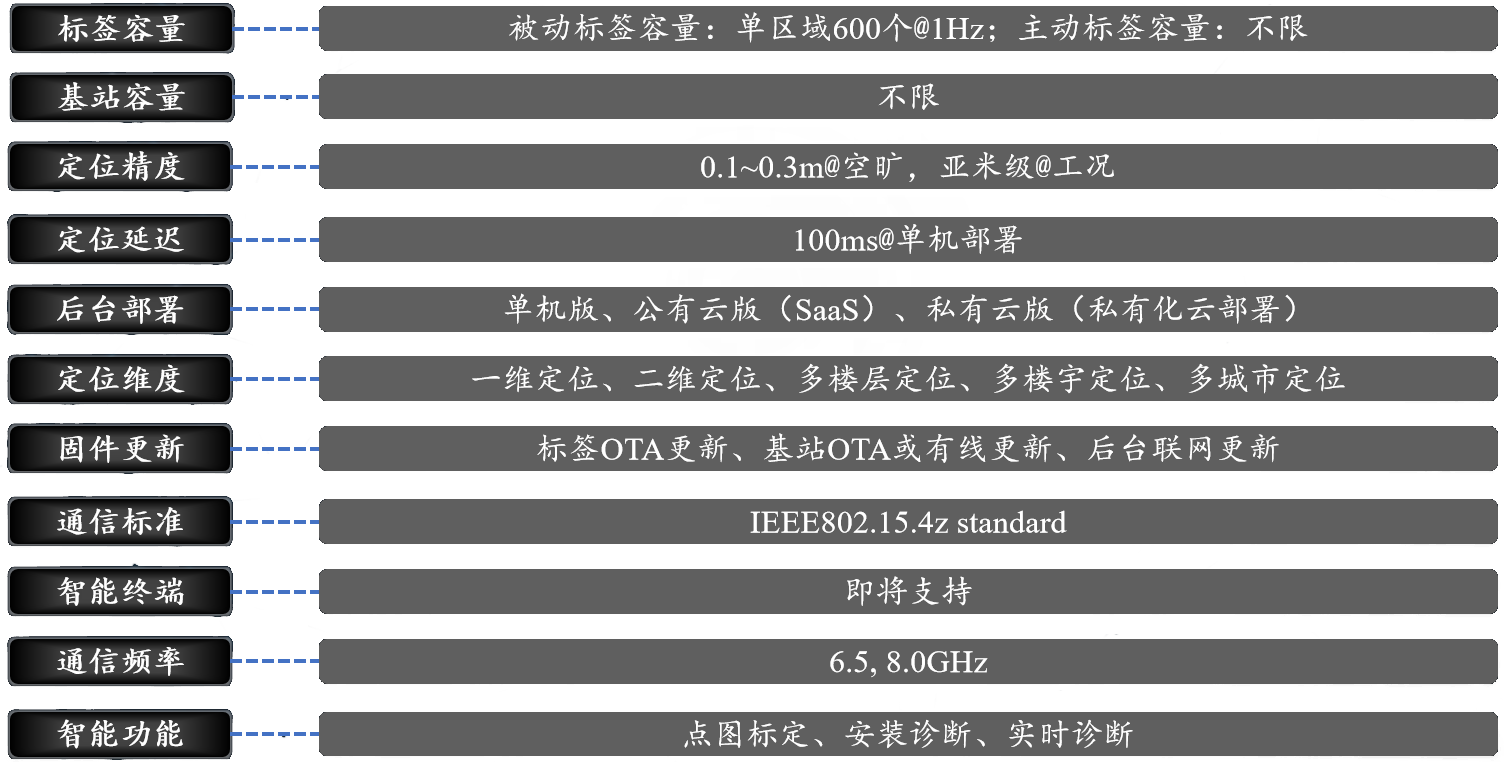

Key Feature

  • UWB Technology

  • Typical Precision up to 10cm

  • UL-TDOA and AOA fusion positioning

  • Low power consumption of tags

  • Wired deployment with high reliability

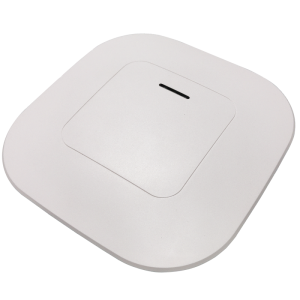

TDOA Anchor:A02

  • Positioning Technology: UWB TDOA
  • UWB Frequency: 6.5&8.0GHz
  • Antenna Type: Integrated Omnidirectional Antenna
  • Communication Range: Typical 100m@6.5G
  • Size: 190*190*53mm
  • Weight: ≤420g
  • Power Supply: POE
  • Communication Interface: POE
  • Cascade Quantity: 6
  • Power Consumption: ≤3W
  • Working Temperature: -40~75℃
  • Protection: IP66
  • Application: Indoor
Learn More

AOA Anchor:A02M

  • Positioning Technology: UWB AOA
  • UWB Frequency: 6.5&8.0GHz
  • Antenna Type: Integrated Array Antenna
  • Communication Range: Typical 20m@6.5G
  • Size: 190*190*53mm
  • Weight: ≤420g
  • Power Supply: POE
  • Communication Interface: POE
  • Cascade Quantity: 6
  • Power Consumption: ≤3W
  • Working Temperature: -40~75℃
  • Protection: IP66
  • Application: Indoor
Learn More

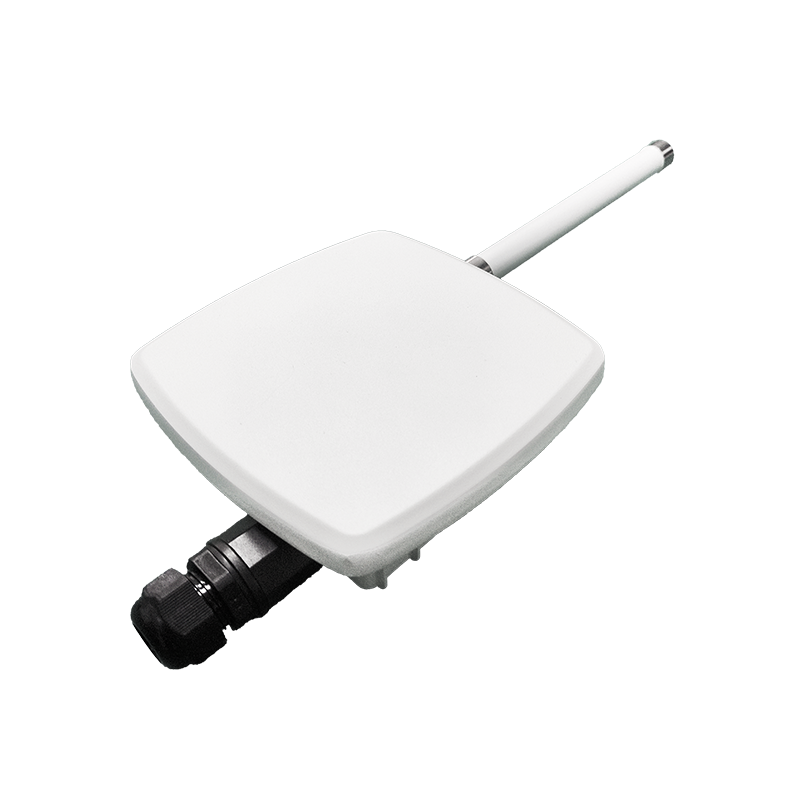

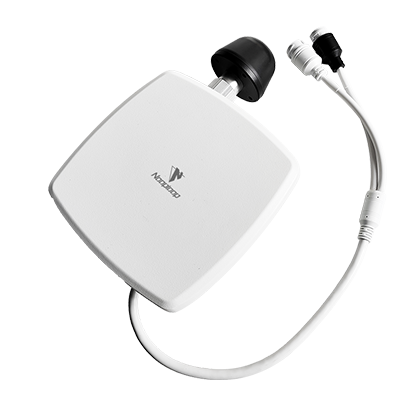

TDOA Anchor:A02P

  • Positioning Technology: UWB TDOA
  • UWB Frequency: 6.5&8.0GHz
  • Antenna Type: External Omnidirectional Antenna
  • Communication Range: Typical 100m@6.5G
  • Size: 143*143*62mm
  • Weight: ≤800g
  • Power Supply: POE
  • Communication Interface: POE
  • Cascade Quantity: 6
  • Power Consumption: ≤3W
  • Working Temperature: -40~75℃
  • Protection: IP68
  • Application: Outdoor and Complex Scenes
Learn More

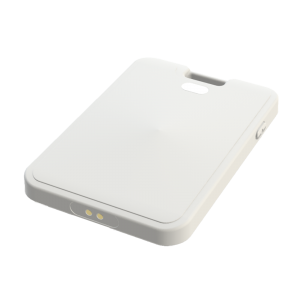

Work Card:T01

  • Size: 59.5*88.5*8.0mm
  • Weight: 51g
  • Power: Rechargeable LiPo
  • Baterry Life: 9 Month①
  • Protection: IP66
  • Alarm: Light, Vibration
  • Function: SOS
  • Application: People
Learn More

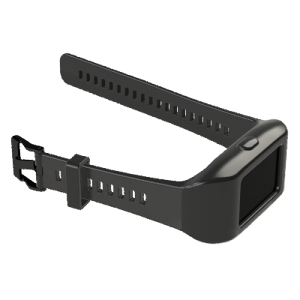

Wristband:T02

  • Size: 116*60*32mm
  • Weight: 35g
  • Power: Rechargeable LiPo
  • Baterry Life: 3 Month①
  • Protection: IP66
  • Alarm: Light, Vibration
  • Function: SOS
  • Application: People
Learn More

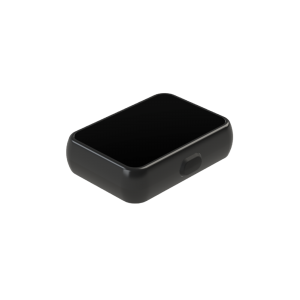

Block Tag:T03

  • Size: 28.5*39.5*10.0mm
  • Weight: 14g
  • Power: Rechargeable LiPo
  • Baterry Life: 3 Month①
  • Protection: IP66
  • Alarm: Light, Vibration
  • Function: SOS
  • Application: Asset, Forklift
Learn More

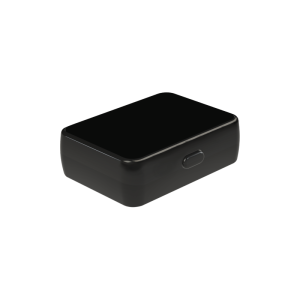

Block Tag:T04

  • Size: 46*34*14mm
  • Weight: 26g
  • Power: CR2477
  • Baterry Life: 18 Month①
  • Protection: IP66
  • Alarm: Light, Vibration
  • Function: SOS
  • Application: Asset, Forklift
Learn More

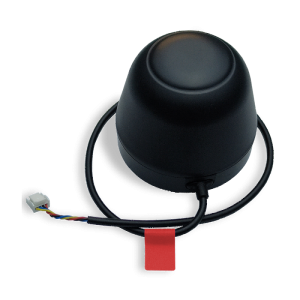

Vehicle Tag:T07

  • Size: φ51*42mm
  • Weight: 31g
  • Power: DC3.6-6.0V
  • Consumption: 8.5mW①
  • Protection: IP66
  • Alarm: Light
  • Function: DataTransmision
  • Application: Powerable Targets
Learn More

①: 1Hz positioning frequency, working for 8 hours per day @6.5GHz.

Vital Sign Monitoring Watch:W200PU

  • Manufacturer: Oviphone
  • Function: Dynamic Heart Rate, SPO2, Oxygen, HRV, Blood Pressure, Body Temperature, Step Counting, etc
  • Baterry Life: Typical 7days
  • Application: Monitoring of special personnel such as the elderly and patients

Asset TagM2 UWB Location Tag

  • Manufacturer: MOKO SMART
  • Function: Support customized development of BLE, IMU, and temperature and humidity sensors
  • Baterry Life: Typical 18Months
  • Application: Asset Positioning

Smart Safety HelmetRL-H21U

  • Manufacturer: HIMIT
  • Function: 4G/WIFI HD Video Transmission, Lighting, SOS
  • Baterry Life: Typical 7days
  • Application: Positioning of high-risk workers

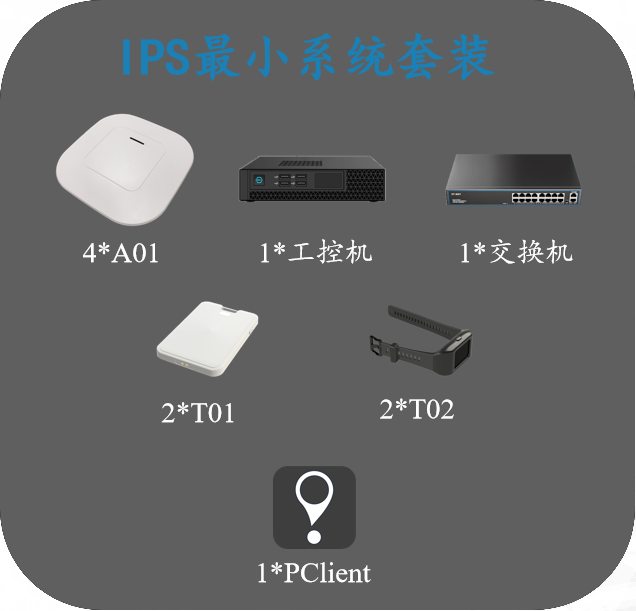

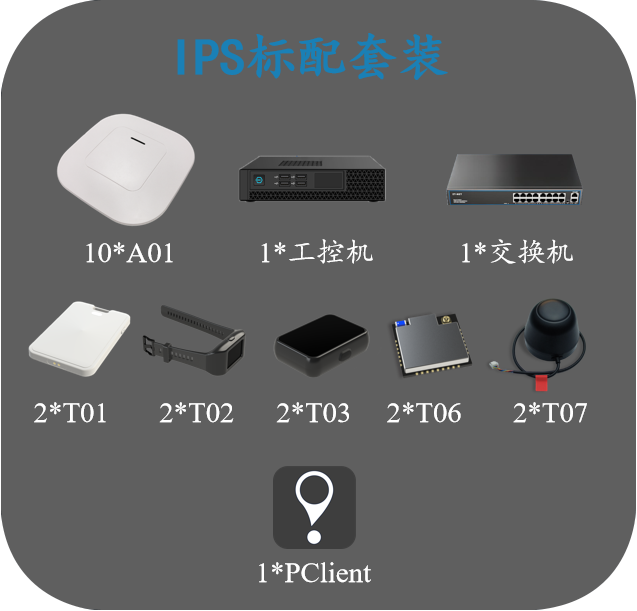

Anchor: 4*A02POE Switch:1*ZT-POE-G01002Gateway: 1*G01SoftwareTech Support: 1 Year1*Laser Rangefinder1*ScrewdriverWork Card Tag: 2*T01Block Tag: 2*T03Vehicle Tag: 2*T07
